Stecker und Pin-Belegungungen, DDM (Fahrertürmodul)

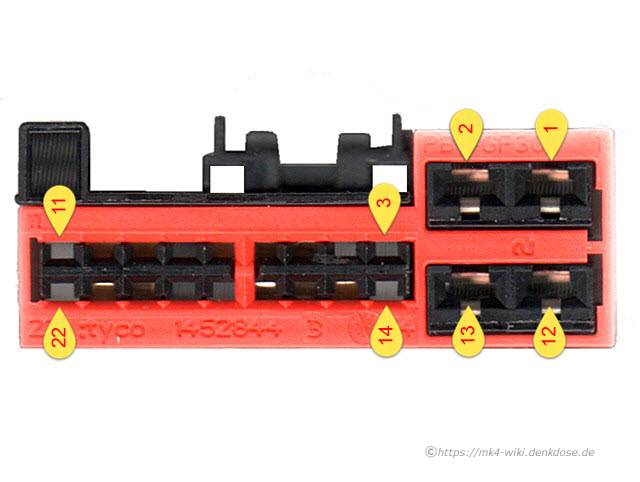

Stecker A
 |
| Tyco 0-1452843-1 |
| Stecker | Pin | Kabelfarbe | Funktion |
|---|---|---|---|
| A | 1 | GN | WINDOW DOWN (MOTOR +) |
| A | 2 | BK | 12V Dauerplus (KL 30, über FA1 (hintere Verteilerbox) und F19 (Hauptverteilerbox)) |
| A | 3 | - | N.C. |
| A | 4 | - | N.C. |
| A | 5 | BU/WH | HALL SENSOR 2 |
| A | 6 | YE/BU | HALL SENSOR 1 |
| A | 7 | BK |  |
| A | 8 | - | N.C. |
| A | 9 | BK | |
| A | 10 | BK | |
| A | 11 | - | N.C. |
| A | 12 | BU | WINDOW UP (MOTOR -) |
| A | 13 | BK | GND (KL 31) |
| A | 14 | GY/VT | COURTESY LIGHT GND / RADAR BLIS LED GND |
| A | 15 | ||
| A | 16 | VT/GN | HALL SENSOR GND |
| A | 17 | WH/BN | HALL SENSOR SUPPLY |
| A | 18 | |
|
| A | 19 | |
|
| A | 20 | BK | LIN-Bus |
| A | 21 | BK | |
| A | 22 | - | N.C. |
Stecker B
 |
| Tyco 0-1452841-1 |
| Stecker | Pin | Kabelfarbe | Funktion |
|---|---|---|---|
| B | 1 | - | - |
| B | 2 | - | - |
| B | 3 | BK | MS-CAN_HIGH |
| B | 4 | - | - |
| B | 5 | BK/YE/BU | Wakeup-Signal direkt vom 10pol. Türstecker. Geht intern an Pin 17 des MC33989 (CAN-Controller) |
| B | 6 | GY/VT | MIRROR SENSOR SUPPLY |
| B | 7 | YE | MIRROR SENSOR GND |
| B | 8 | GN | MIRROR X |
| B | 9 | BU/WH | MIRROR X/Y |
| B | 10 | GN/VT | MIRROR HEATING |
| B | 11 | GN/BN | SIDE TURN INDICATOR |
| B | 12 | VT/GN | PUDDLE LIGHT |
| B | 13 | - | - |
| B | 14 | - | - |
| B | 15 | BK | MS-CAN_LOW |
| B | 16 | GN/WH | RADAR BLIS LED |
| B | 17 | VT/BN | MIRROR FOLD IN |
| B | 18 | BN/YE | MIRROR SENSOR INPUT Y |
| B | 19 | YE/BU | MIRROR SENSOR INPUT X |
| B | 20 | - | GND |
| B | 21 | BK(10pol) | zum Türstecker |
| B | 22 | BK(10pol) | zum Türstecker |
| B | 23 | VT/GN | MIRROR GND |
| B | 24 | BU/BN | MIRROR Y/FOLD OUT |
